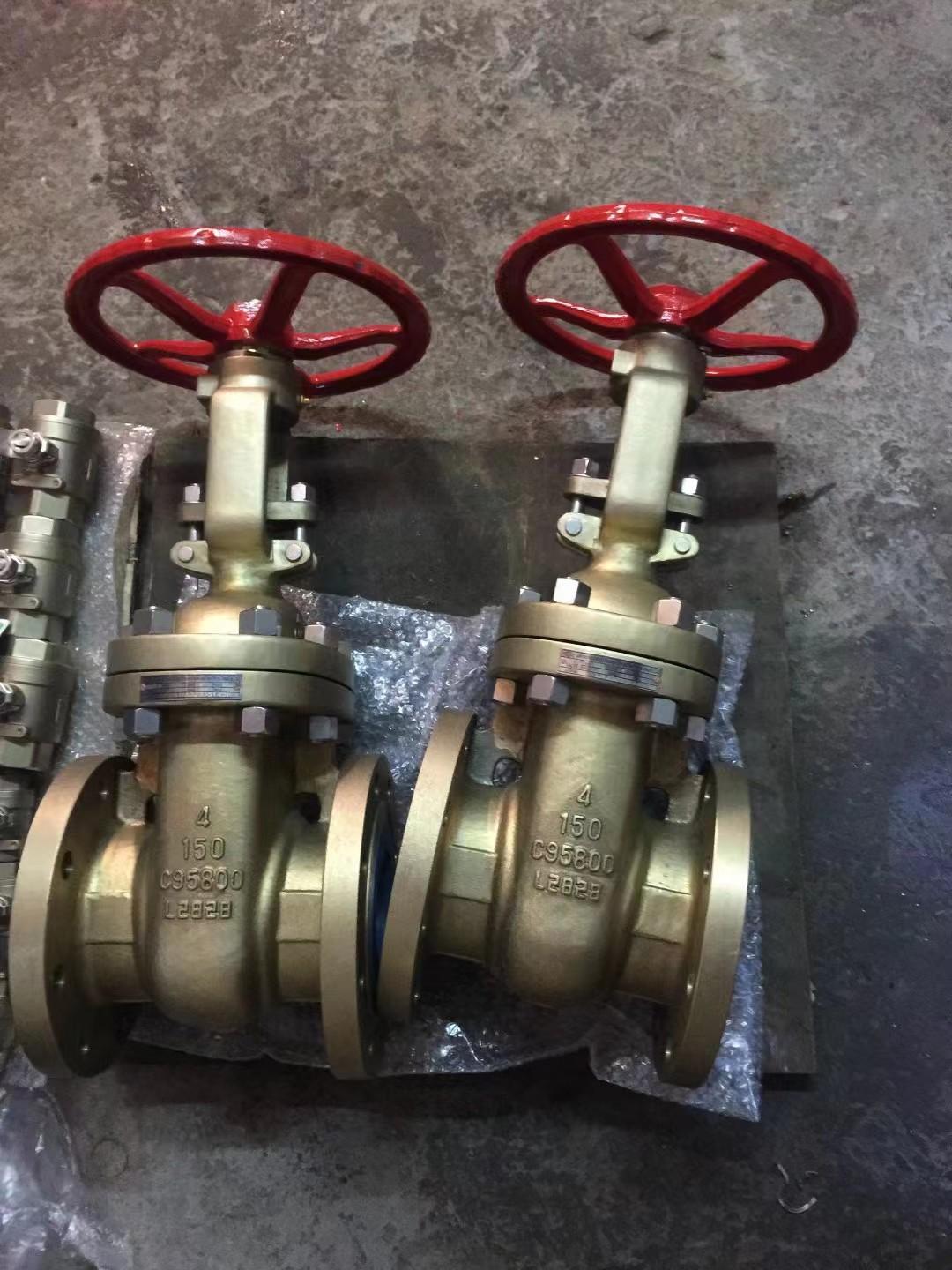

Aluminium Bronze Gate Valve
Body: Aluminium Bronze ASTM B148 C95800 , Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy
20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Bonnet: Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex
Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, Â C5, C12, LCB, CF3M
Disc: Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex
Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, Â C5, C12, LCB, CF3M
Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy,
Alloy 20, Duplex Stainless Steel, Super Duplex Stainless Steel
Gland Packing: Graphite, PTFE
End Connections: Flanged, Socketweld, Buttweld

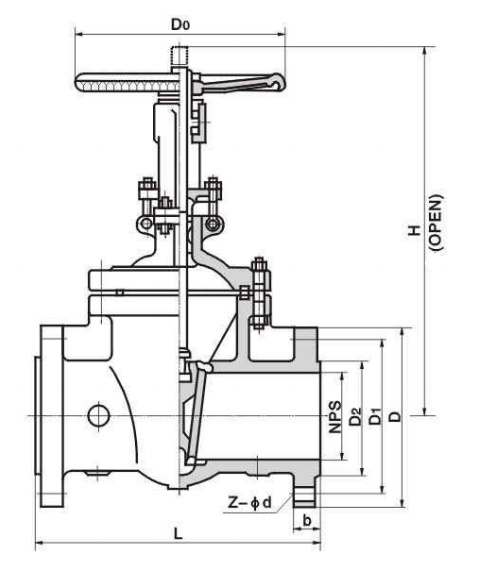

Dimensions                      Unit: mm
Class150
DN | L | H | D | D1 | D2 | b | Z-Ñ„d | D0 |
50 | 178 | 409 | 152 | 120 | 92 | 19 | 4-19 | 200 |
80 | 203 | 570 | 190 | 152 | 127 | 23 | 4-19 | 250 |
100 | 229 | 590 | 229 | 190 | 157 | 23 | 8-19 | 250 |
150 | 267 | 630 | 279 | 241 | 216 | 25 | 8-22 | 300 |
200 | 292 | 960 | 343 | 298 | 270 | 28 | 8-22 | 350 |
250 | 330 | 1158 | 406 | 362 | 324 | 30 | 12-25 | 400 |
300 | 356 | 1378 | 483 | 432 | 381 | 31 | 12-25 | 450 |
350 | 381 | 1543 | 533 | 476 | 413 | 35 | 12-29 | 500 |
400 | 406 | 1738 | 597 | 539 | 470 | 36 | 16-29 | 600 |
