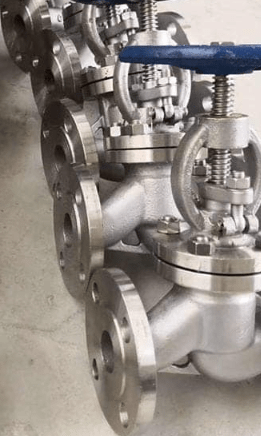

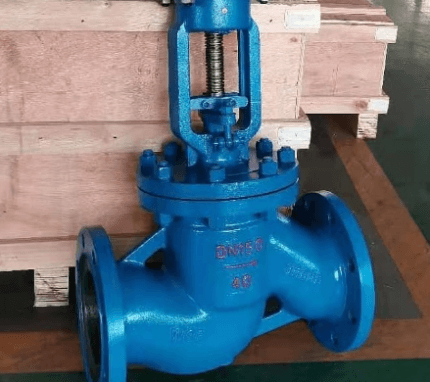

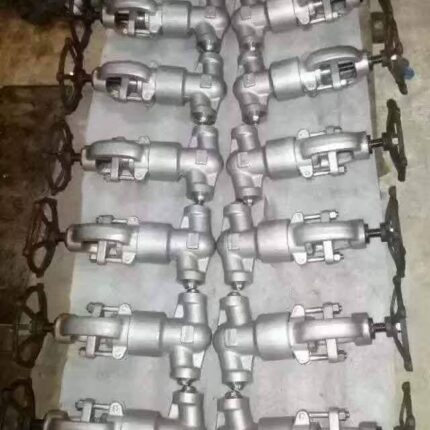

Bellow Seal Globe Valve
Middleeast Valve is the foremost supplier company of Bellow seal globe valve in UAE .Which supplies good quality of valves to Kalba , Ar-Rams , Abu Dhabi.
A Bellow Sealed Valve, also known as a ‘Zero-Leak Valve’ is a specially designed industrial valve that was developed in response to the need for a completely new way to provide the necessary sealing for use in industries that deal with toxic media, where even minor leaks can be disastrous.
The bellow cartridge contains a number of convolutions, which are compressed or expanded depending on the movement of the valve stem. When the valve is in the open position, the bellow is compressed, and when the valve is in the closed position, the bellow is expanded.
Advantages:-
- It has a double seal that consists of packing and bellows.
- It decreases medium fluid loss and advances environmental and safety protection.
- It has the ability to save energy because it works to cut down on leakage-related energy losses.
- The valves last a long time.
- There is a significant reduction in the cost of operation and maintenance.
- It makes sure that the valve stem is not leaking, enabling maintenance-free operation.
Applications
- High integrity pressure protection system
- Handling solids (powders, fines, dust, and catalysts)
- Coal conversion and gasification
- Coal conversion and gasification
- Compressor stations
- Systems for separating, filtering, and drying
What is globe valve?
A globe valve controls a pipeline’s flow. The movement of liquid or gas via a pipe is managed or stopped using it. The name “globe valve” refers to the spherical shape of the body, which is divided into two halves by an internal baffle. It is also known as throttle valves
A disc or plug is used to cover the globe valve’s opening in the seat, which is located in the middle and parallel to the pipe. It consists of a rotating disk-like component and a fixed ring seat inside of an usually spherical body.
Advantages of a Globe Valve
- Excellent shutoff capability
- Throttling capability ranging from moderate to excellent stroke lengthening (compared to a gate valve)
- Available in y, z, and angle patterns, each with its own set of advantages.
- Seats are simple to machine or resurface.
- The valve can be used as a stop-check valve when the disc is not attached to the stem.
- Has excellent closure ability.
- Repair work is easy to repair as the seat and disc can be accessed from the valve top.
Applications of a Globe Valve:
- Piping in small sizes.
- Plumbing sector.
- Provide flow control.
- Provide leak tightness.
- Pumps and compressors.
- Used as an emergency shutdown valve
Description of a Bellow Seal Globe Valve:
Middleeast Valve is the foremost supplier company of Bellow seal globe valve in UAE offering an extensive range of valves in numerous sizes, styles and designs.
Material: Cast Iron, Cast steel [LCB, LCC, WCB, WCC, WC6, WC9], Ductile Iron, Stainless Steel [CF8, CF8M, F3, F304, F316, F31L, F51, F55, F91, SS304, SS316, SS316L, SS904L]
Ends: Flanged, Buttweld, Socketweld, Threaded
Class: 150- 2500; PN25- PN450
Size: ½” to 24”
