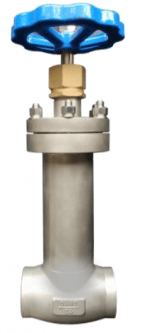

Cryogenic Steam Jacket Globe Valve
Shipping
Description
Cryogenic Steam Jacket Globe Valve
Body: SS304, SS316, F304, F316
Bonnet: Stainless Steel
Stem: Stainless Steel
Stuffing: PTFE
Seal ring: PTFE
Nominal Diameter: DN10 to DN50
Nominal Pressure: PN1.6 to 6.4MPa, Class150, Class300
Suitable Media: LNG,LO2,LN2,LAr,etc
Suitable Temperature: -196℃ to +80℃
Connection Type:Socket welding
Heat Insulating Type:PU insulation
Dimension
PN16 Unit: mm
| DN | H(on) | H(off) | L | L1 | L2 | D | D1 | D2 | b |
| 10 | 255 | 245 | 61 | 157 | 145 | 65 | 10 | 14.5 | 6 |
| 15 | 255 | 245 | 61 | 157 | 145 | 66 | 15 | 18.5 | 6 |
| 20 | 302 | 289 | 81 | 185 | 173 | 80 | 20 | 24.5 | 6 |
| 25 | 302 | 289 | 81 | 185 | 173 | 80 | 26 | 28.5 | 6 |
| 32 | 355 | 340 | 102 | 221 | 206 | 100 | 32 | 38.5 | 9 |
| 40 | 355 | 340 | 102 | 221 | 206 | 100 | 42 | 45.5 | 9 |
| 50 | 391 | 370 | 127 | 228 | 213 | 120 | 54 | 58 | 10 |
