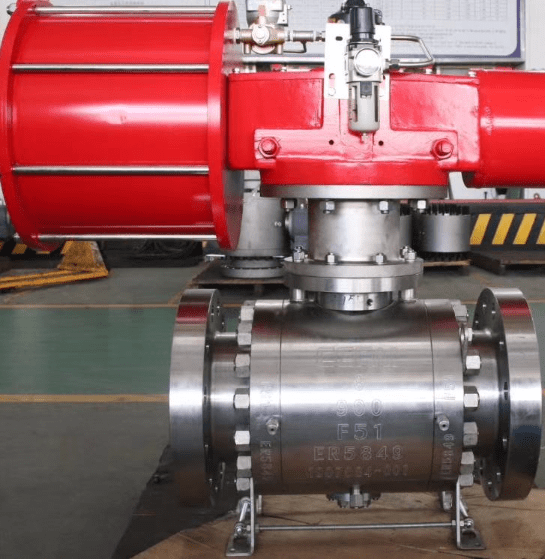

Pneumatic Three Piece Flanged Ball Valve
Actuation Type: Spring Return, Double Acting
Body: CF8M, Carbon Steel
Ball: Stainless Steel, Carbon Steel
Sealing Material: PTFE
End Connection: Threaded, Buttweld(BW), Socketweld, Flanged
Nominal Size: DN15 to DN200
Nominal Pressure: Class150, PN16
Operation: Lever Operated. Gear Operated, Electric Actuated, Pneumatic Actuated

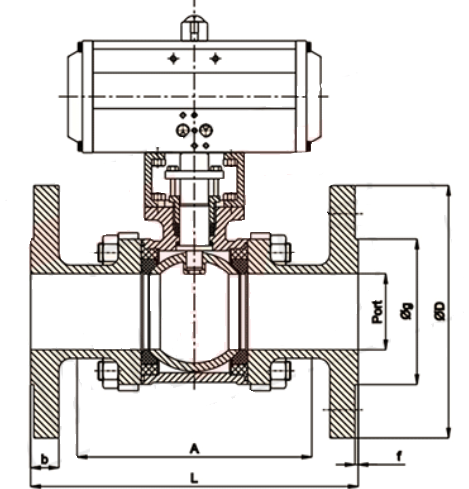

Dimensions                                                                                                       Unit: mm
DN | L | L0 | L1 | L2 | H | D | D1 | D2 | C | f | n- Φd |
15 | 150 | 72 | 178 | 121 | 204 | 95 | 65 | 46 | 14 | 2 | 4- Φ14 |
