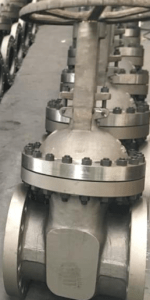

Rising Stem Carbon Steel Gate Valve

Soft Edge collection

Hurry and get discounts up to 20% Read more

Shipping

  • 🚚 Standard delivery – All orders are processed and shipped as per standard timelines.
  • ☎️ 24/7 customer support – assistance available day and night.



Product details

Description

Rising Stem Carbon Steel Gate Valve

Body: Carbon Steel

Gate: Carbon Steel

Stem: Stainless Steel

Gasket: Graphite+Stainless Steel, PTFE

Bolt: A193 B8

Nut: Carbon Steel

Back Seat: Steel

Bonnet: Carbon Steel

Packing: Graphite, PTFE

Gland: Steel

Gland Flange: Carbon Steel

Pin: Stainless Steel

Eye Bolt: A193 B7

Gasket: Graphite+Stainless Steel, PTFE

Nut: Carbon Steel

Oil Filler: Steel

Stem Nut: Ductile iron, Bronze

Gland Nut: A194 2H

Handwheel: Ductile iron, Carbon Steel, Stainless Steel

Lock Nut: Carbon Steel

Nominal Diameter: DN50 to DN300

Nominal Pressure: Class150 to Class2500, PN16 to PN64

End Connection: Flanged, Buttweld, Socketweld

Dimension

PN16                                                                                  Unit: mm

DN L D D1 D2 W N-фd B H
50 178 165 125 99 178 4-ф19 20 380
65 190 185 145 118 178 4-ф19 20 430
80 203 200 160 132 200 8-ф19 22 485
100 229 220 180 156 200 8-ф19 24 615
125 254 250 210 184 250 8-ф19 26 700
150 267 285 240 211 280 8-ф22 26 835
200 292 340 295 266 300 12-ф22 30 1010
250 330 405 355 319 360 12-ф25 32 1220
300 356 460 410 370 400 12-ф28 32 1435
