Super Duplex Wafer Butterfly Valve
Body: Super Duplex S2507, UNS S32750, UNS S32760, UNS S32950
Disc: Stainless Steel
Stem: SS304, SS316
Seat: EPDM, NBR, VITON
Bushing: PTFE
O Ring: EPDM, NBR, VITON
Nominal Size: DN40 to DN300
Nominal Pressure: PN10 to PN64, Class150 to Class2500

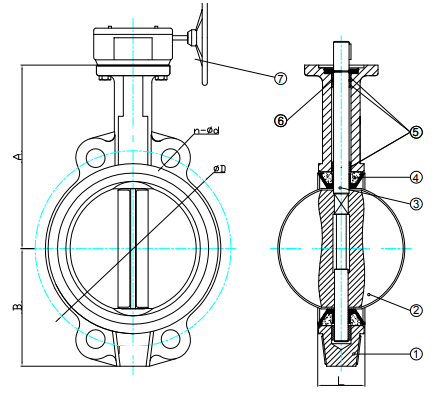

Dimensions Unit: mm
PN10
| DN | L | A | B | фD | n-фd |
| 40 | 33 | 131 | 65 | 110 | 4-ф18 |
| 50 | 43 | 161 | 67 | 125 | 4-ф18 |
| 65 | 46 | 175 | 75 | 145 | 4-ф18 |
| 80 | 46 | 181 | 96 | 160 | 8-ф18 |
| 100 | 52 | 200 | 114 | 180 | 8-ф18 |
| 125 | 56 | 213 | 129 | 210 | 8-ф18 |
| 150 | 56 | 225 | 144 | 240 | 8-ф22 |
| 200 | 60 | 260 | 167 | 295 | 8-ф22 |
| 250 | 68 | 292 | 207 | 350 | 12-ф22 |
| 300 | 78 | 337 | 237 | 400 | 12-ф22 |
