2 Piece Screwed Ball Valve
Shipping
Description

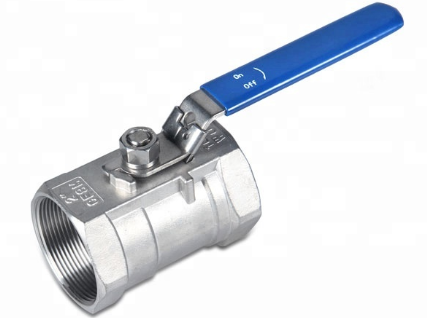

2 Piece Screwed Ball Valve
Body: CF8, CF8M, Cast Iron, Carbon Steel
Bonnet: CF8, CF8M, Cast Iron, Carbon Steel
Ball: SS304
Stem: SS304
Gland Nut: SS304
Washer: SS304
Stem Nut: SS201
Seal Ring: PTFE
Gasket: PTFE
Thrust Washer: PTFE
Packing: PTFE
Handle: SS201
Handle Cover: Plastic
Nominal Pressure: PN1.6 to 6.4MPa
Nominal Diameter: DN15 to DN100
Applicable medium: water, oil, gas and some corrosive liquid
Butt welding standard: ANSIB16·25
Dimension Unit: mm

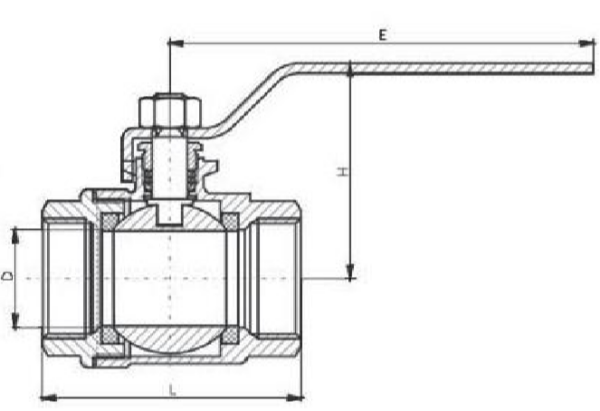

| DN | SIZE(INCH) | ΦB | E | L | H | W |
| DN15 | 1/2″ | 15 | 14 | 61 | 54 | 105 |
| DN20 | 3/4″ | 20 | 15 | 71 | 61 | 110 |
| DN25 | 1″ | 25 | 18 | 81 | 67 | 130 |
| DN32 | 1-1/4″ | 32 | 20 | 96 | 80 | 140 |
| DN40 | 1-1/2″ | 38 | 21 | 105 | 87 | 165 |
| DN50 | 2″ | 49 | 21 | 120 | 97 | 175 |
| DN65 | 2-1/2″ | 65 | 28 | 162 | 122 | 215 |
| DN80 | 3″ | 80 | 30 | 170 | 141 | 250 |
| DN100 | 4″ | 100 | 32 | 225 | 163 | 300 |
