1 Piece Screwed Cast Iron Ball Valve
1. Body: CF8, CF8M, Carbon Steel, Cast Iron
2. Insert: CF8, CF8M, Carbon Steel, Cast Iron
3. Ball: CF8, CF8M, Carbon Steel, Cast Iron
4. Ball Seat: PTFE
5. Joint Gasket: PTFE
6. Stem: SS304, SS316
7. Thrust washer: PTFE
8. Stem packing: PTFE
9. Stem washer: SS304
10. Handle: SS304
11. Spring Washer: SS304
12. Stem nut: SS304
13. Washer: SS304
14. Cover: Plastic
15. Locking Device: SS304
Full Port or Reduced Port
BSP or NPT
Blow-out proof stem, Double reduced port
Size: DN8 to DN80
Operation: Locking Device, Oval Handle, Wing Handle
Dimensions Unit: mm

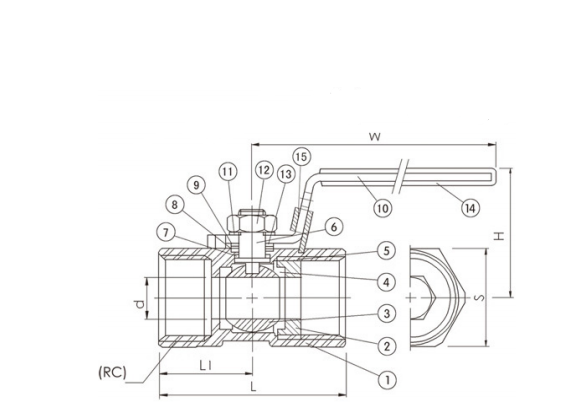

DN | d | L | L1 | H | W | S |
8 | 5 | 39 | 19 | 30 | 70 | 17 |
10 | 6.8 | 44 | 21 | 34 | 90 | 21 |
15 | 9.2 | 56.5 | 27.5 | 41 | 100 | 25 |
20 | 12.5 | 59 | 29 | 44 | 100 | 32 |
25 | 15 | 71 | 34.5 | 50 | 110 | 38 |
32 | 20 | 78 | 37 | 55 | 110 | 48 |
40 | 25 | 83 | 40 | 64 | 135 | 53 |
50 | 32 | 100 | 49 | 70 | 145 | 65 |
65 | 38 | 128 | 60 | 83 | 190 | 85 |
