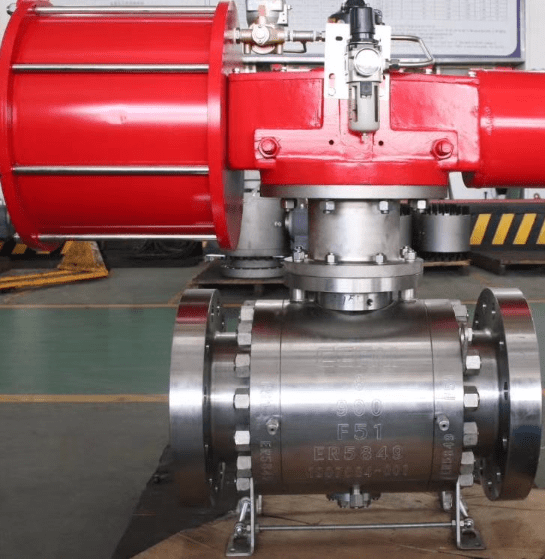

Pneumatic Trunnion Forged Ball Valve
Size: 2″ to 56″
Pressure: Class 150 to Class 1500
Material: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacture Standard: API 608, API 6D, BS 5351, ASME B16.34
Face to Face Standard: API B16.10, API 6D, DIN 3202
End Connection Standard: ASME B16.5, ASME B 16.47, ASME B 16.25, DIN2543-2550
Test Standard: ISO5208, API 6D, BS 6755
Structure Type: One, Two or Three-Piece Body, Reduced Bore, Full Bore
Operation: Lever, Gear, Pneumatic, Electric Actuated
Dimensions
| Size |
in |
2 |
2 1/2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
| mm |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
| L/L1(RF/BW) |
in |
17.75 |
20.00 |
22.75 |
26.5 |
36.00 |
40.25 |
50.00 |
56.00 |
– |
– |
| mm |
451 |
508 |
578 |
673 |
914 |
1022 |
1270 |
1422 |
– |
– |
| L2(RTJ) |
in |
17.88 |
21.25 |
23.00 |
26.88 |
36.50 |
40.88 |
50.88 |
56.88 |
– |
– |
| mm |
454 |
540 |
584 |
683 |
927 |
1038 |
1292 |
1445 |
– |
– |
| H |
in |
7.50 |
9.00 |
11.00 |
14.12 |
15.75 |
18.88 |
20.50 |
26.38 |
– |
– |
| mm |
190 |
230 |
280 |
360 |
400 |
480 |
520 |
670 |
– |
– |
| W |
in |
24 |
32 |
32 |
32 |
32 |
40 |
40 |
40 |
– |
– |
| mm |
600 |
800 |
800 |
800 |
800 |
1000 |
1000 |
1000 |
– |
– |
| WT(Kg) |
RF/RTJ |
68 |
95 |
120 |
185 |
675 |
1100 |
1650 |
2300 |
– |
– |
| BW |
54 |
74 |
91 |
122 |
555 |
918 |
1355 |
2950 |
– |
– |
