Understanding API Valve Standards for Oil and Gas Applications

The best approach to understanding API Valve Standards and reducing the effects of high temperatures on industrial valve performance is to have a comprehensive and precise specification during the project design phase. Temperature ratings have to cover the whole range of circumstances the valve will actually encounter, including ambient extremes, solar heat gain for outdoor applications, start-up and shut-down transients, and the thermal shock connected with quick fluctuations in fluid temperature, not only the nominal process fluid temperature.

The best candidates to assist the specification process effectively are valve suppliers with real experience in Middle Eastern industrial settings like Middle East Valve, supported by documented material test data and third-party certification for pertinent temperature ranges. Getting temperature-related valve specifications right at the start always costs less than dealing with early failures, replacing equipment, and unexpected maintenance events once a plant is in operation.

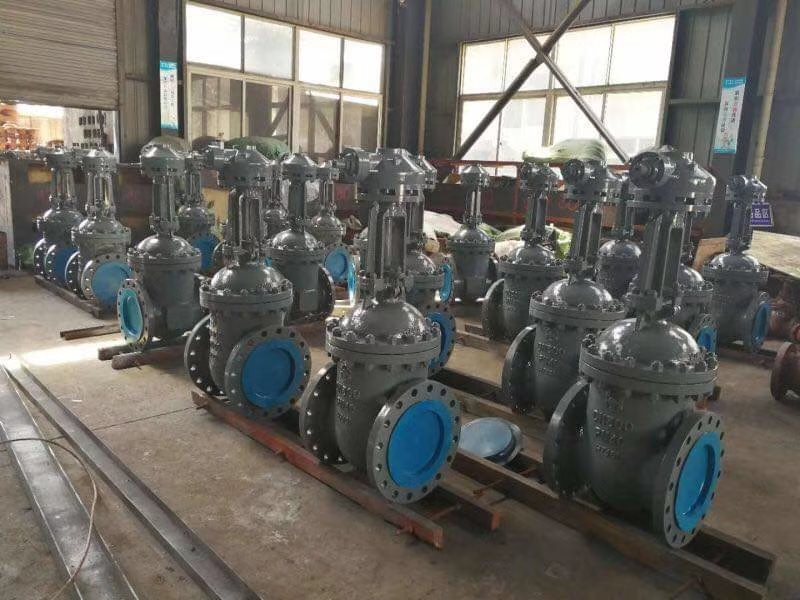

The Purpose and Value of API Valve Standards

Development of API Valve standards occurs via a strict consensus procedure assembled from experienced engineers, operators, producers, and regulators throughout the oil and gas sector. The derived standards specify minimum acceptable criteria for materials, dimensional properties, pressure ratings, testing methods, marking conventions, and paperwork for particular types of equipment.

Choosing valves that meet API valve standards provides a number of real advantages for project engineers and operators. It guarantees dimensional compatibility among valves from various manufacturers, therefore simplifying replacement and inventory management throughout a facility with thousands of installed valves. By creating a recorded quality and performance baseline, it lessens the engineering load of manually assessing the product claims of every vendor. Additionally, it provides a clear record for regulatory compliance, which shows safety regulators and insurers that gear has been made, developed, and evaluated to acknowledged international norms.

API 6D: The Pipeline API Valve Standard

API 6D is one of the most commonly referred and wide-reaching standards for valves used in oil & gas applications. It includes requirements for ball valves, plug valves, check valves, and gate valves that are intended for use in pipeline and piping applications dealing with liquid and gaseous hydrocarbons. In scope of the standard, there are requirements covering various aspects of design, from materials, dimensions, pressure/temperature ratings, welding requirements, through testing procedures, inspections, and documentation.

The factory acceptance testing procedure defined in API 6D includes shell testing under hydrostatic condition at 1.5 times rated working pressure, ensuring integrity of the valve body with no leakage. Testing of seating is performed at the rated pressure to ensure sealing performance of the seat. With double block-and-bleed valve designs, testing procedures for upstream and downstream seats, and body cavity venting between those seats are specifically provided by API 6D.

API 6D becomes a starting point for most of the valve applications in mainline and station piping for oil & gas pipelines operating in UAE, Saudi Arabia, and Middle East region in general.

API 6A: Wellhead and Christmas Tree Equipment

The API 6A specification covers the design and fabrication of equipment utilized at the wellhead and in Christmas tree assemblies, in which the conditions of operation represent some of the toughest encountered anywhere in the world of oil and gas. The pressure rating classes covered by API 6A start at 2000 psi and extend to 20,000 psi, thus catering to the entire gamut of field pressures seen throughout the Middle East region.

The gate valve is the predominant valve type covered under the umbrella of the API 6A specification, but flanges, spools, tees and other pressure-retaining wellhead equipment are also covered by the standard. There are several product specification levels (PSL 1 up to PSL 4), which increasingly impose tougher material testing and dimension inspection requirements. The PSL 3 and PSL 4 specifications are the required API 6A valve standards for high-pressure gas wells and those containing large amounts of H2S.

Material traceability, independent third-party inspection services, and proven sour-service compliance according to NACE MR0175 are all part and parcel of API 6A equipment specified in the region. The documentation for these higher PSL API 6A valves will naturally be extensive, and a supplier familiar with this procedure will truly be a valuable ally on your wellhead project.

API 607 and API 608: Fire Testing and Metal Ball Valves

The fire-test procedure and acceptance criteria are set out by API 607 in terms of a test on a soft-seated quarter-turn valve. The valve under test is subjected to a controlled fire at specified temperatures and for a period of time, after which it is necessary for it to exhibit its sealability performance through the use of its secondary metal seats. Completion of the API 607 testing procedure confirms the capability of the valve design to still isolate itself despite the destruction of the primary soft seal in the event of a fire.

In relation to process valves in hydrocarbon services throughout the Middle East region, API 607 fire-safe certification is almost universally required. An operator would not rely only on the claims of fire-safety in respect of valve designs and would require a certification test carried out by a recognized testing agency. This test certificate must be included in the traceability documentation of the valve.

The API 608 standard relates to metal ball valves intended for general piping applications in the petroleum and natural gas industries.

API 598: Inspection and Pressure Testing

API 598 is not a design or construction code but a testing and inspection procedure. The tests include all pressure tests to be carried out on valves manufactured from the manufacturer’s plant and includes gate valves, globe valves, check valves, ball valves, butterfly valves, and plug valves of different pressure classes and end connection configurations. The test pressures, test duration, and leakage criteria are clearly stated in API 598.

The API 598 testing requirements are frequently specified as minimum standards in procurement documents for oil and gas valves irrespective of the design standard being followed. The API 598 test report is an integral part of the traceability document and acts as written proof that each valve supplied has undergone physical testing in accordance with API 598 specifications.

Applying API Valve Standards in Middle East Projects

Knowing how to interpret the API valve standards requirements is one thing. Implementing them successfully when it comes to working with actual oil and gas projects in the region involves certain factors that extend beyond the scope of the API requirements. Large operators like Saudi Aramco, ADNOC, and KOC keep their own supplementary specifications that add extra demands beyond the API minimums. Engineers formulate project-specific valve material requisition based on API requirements plus operator specs and project-service conditions.

This means that in order to operate successfully in this environment, suppliers have to be familiar not only with the API valve standards but also with the additional demands of large regional operators, to be certified by independent third-party bodies, and to provide adequate documentation packages that comply with QMS demands.

In view of the fact that the oil and gas industry in the Middle East is still rapidly growing and developing its resources and expanding production capacity, API valves will continue to serve as the backbone of facility engineering.

Standards for valves have evolved over decades to document the knowledge gathered through years of experience with these important components. The use of valve standards ensures the safety and reliability of the equipment used in oil and gas facilities worldwide. For all those involved with the design, operation, and procurement of oil and gas facilities in the Middle East region, it is important to see valve standards as something more than just mandatory documentation. It is an engineering solution that can be easily understood to ensure the selection and purchase of reliable and tested pressure-containing equipment.

Knowledge about relevant valve standards and what they include in terms of requirements and procedures makes it possible to ensure the quality of the equipment. At the same time, understanding the requirements that should be considered alongside these standards can make a difference in achieving the best results in a project. Cooperation with experienced valve manufacturers will help get maximum benefit from this valuable knowledge.
