Titanium Gr.5 3pc Ball Valve
Middleeast Valve is a premium industrial valve manufacturer and world-class supplier of top-quality industrial valves, designed for high-performance in the most corrosive and highest-pressure applications. Our Titanium Gr.5 3pc Ball Valve provides superior strength, high corrosion resistance, and simple maintenance, making it suitable for mission-critical use.
Definition
A Titanium Gr.5 3pc Ball Valve is a three-piece ball valve constructed of Titanium Grade 5, a titanium alloy with high mechanical strength and corrosion resistance against severe chemicals and seawater. The 3-piece body construction provides easy disassembly without having to remove the valve from the pipeline.

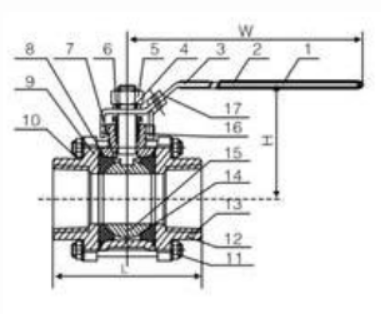

Key Parts
Main elements consist of a Titanium Gr.5 valve body, floating ball, stem, PTFE or PEEK seats, end connections, and fasteners. The modular body sections are bolted together for easy internal access for cleaning or repairs.
Working Mechanism
The valve has a quarter-turn actuator or handle. By a 90-degree turn, the ball floating within either opens or closes the flow path by aligning with (open) or opposing (closed) the path. The ball comes against the downstream seat to make a leak-tight seal. The 3-piece construction eases servicing in-line without agitating the system.
Benefits
- High strength-to-weight ratio and durability
- Strong corrosion resistance in seawater, acids, and chlorides
- Simple in-line maintenance through 3-piece body design
- Smooth operation and tight sealing
- Suitable for high-purity and high-pressure systems
Industries
Extensively used in marine, offshore, chemical processing, oil & gas, aerospace, desalination industries.
Why is it Required?
This valve is essential in applications that require both chemical resistance and high mechanical strength with low downtime.
Why Customers Should Buy from Us?
Middleeast Valve provides precision-engineered valves with quick delivery, certified quality, and prompt support for all industrial requirements.
