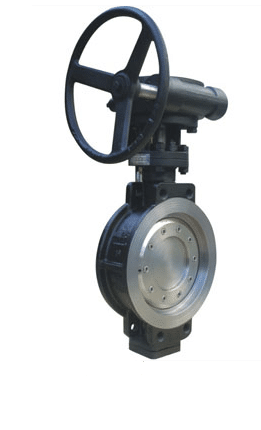

Wafer Triple Offset Butterfly Valve

Wafer Triple Offset Butterfly Valve Supplier in Muscat: Compact Design for High-Performance Flow Control

Middleeast Valve is the top Wafer Triple Offset Butterfly Valve Supplier in Muscat. It is a butterfly valve that has three offsets to reduce wear and offer frictionless performance. The wafer-type body is inserted between two flanges, hence compact and inexpensive installation. This valve suits applications demanding bubble-tight shutoff in high-temperature and high-pressure situations.

Components:

1. Valve Body: Wafer-type for light, compact installation
2. Disc: Offset disc allows least contact with seat for greater longevity
3. Seat: Generally metal-to-metal to meet high-seal requirements
4. Stem: Connects the actuator or handle to the disc
5. Actuator/Gearbox: Allows for manual, electric, or air operation

Working Mechanism:

The valve employs a triple offset configuration: two offsets from the center of the valve and one angle offset of the axis of disc-seat contact. This provides frictionless rotation of the disc until final seating, when it makes a metal-to-metal, tight seal. Wafer configuration permits the valve to be flange-sandwiched, saving weight and space of installation.

Benefits:

• Frictionless operation minimizes wear and maximizes service life
• Metal-to-metal sealing provides zero leakage
• Lightweight and compact design for hassle-free installation
• Ideal for high-pressure and high-temperature applications
• Low torque requirement allows efficient automation

Industries:

1. Oil & Gas
2. Power Generation
3. Chemical Processing
4. Water Treatment
5. Marine and Offshore
