Hastelloy C276/B3 Swing Check Valve

Soft Edge collection

Hurry and get discounts up to 20% Read more

Shipping

  • 🚚 Standard delivery – All orders are processed and shipped as per standard timelines.
  • ☎️ 24/7 customer support – assistance available day and night.



Product details

Description

Hastelloy C276/B3 Swing Check Valve

Body: Hastelloy c276/B3

Disc: Hastelloy, 13Cr

Stem: Hastelloy, 13Cr

Seat Ring: SS304/Nylon, Stellite, SS304, SS316

Nominal Pressure: PN 1.0 to 2.5Mpa, Class 150 to 600

Nominal Size: DN50 to DN600

Temperature: -198°c to 450°c

Design and Manufacture: ANSI B16.34, API 6D, DIN 3840, BS EN 1868

Face to face Dimensions: ANSI B16.10, API 6D, DIN3202, BS EN558-1

Flanged connection: ANSI B16.5, DIN 2543, BS EN 1092-1

Test and inspection: API598, API6D, DIN3230, BS EN 12569

Butt welded end: ANSI B16.25

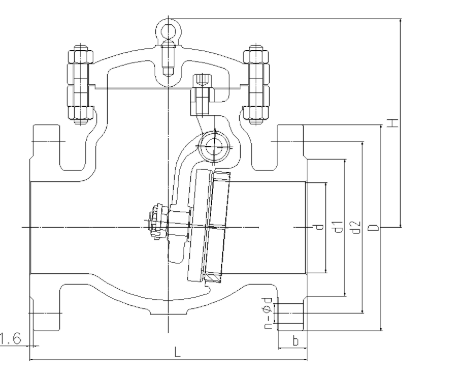

Dimensions                                                                                                          Unit: mm

Class150

DN d L d1 d2 D b n-фd H
50 51 203 92 120 152 16 4-ф19 132
65 64 216 105 139 178 18 4-ф19 147
80 76 241 127 152 190 19 4-ф19 176
100 102 292 157 190 229 24 8-ф19 198
125 127 330 186 216 254 24 8-ф22 255
150 152 356 216 241 279 26 8-ф22 320
200 203 495 270 298 343 29 8-ф22 380
250 254 622 324 362 406 31 12-ф25 440
300 305 699 381 432 483 32 12-ф25 480
350 337 787 413 476 533 35 12-ф29 530
400 387 864 470 540 597 37 16-ф29 580
