Cryogenic Gate Valve
Shipping
Description
Cryogenic Gate Valve
Body: SS304, SS316, SS316L, F304, F316
Bonnet: Stainless Steel
Stem:Stainless Steel
Packing: PTFE
Disc face ring :PTFE
Nominal diameter: DN15 to DN50
Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300,Class800
Applicable medium: O2, N2, Ar, LNG
Applicable temperature: -80℃ to +80℃

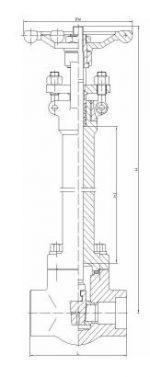

Dimension
PN16 Unit: mm
| DN | L | H | W |
| 15 | 79 | 290 | 125 |
| 20 | 92 | 305 | 125 |
| 25 | 111 | 340 | 160 |
| 32 | 120 | 390 | 160 |
| 40 | 120 | 405 | 180 |
| 50 | 140 | 455 | 200 |
