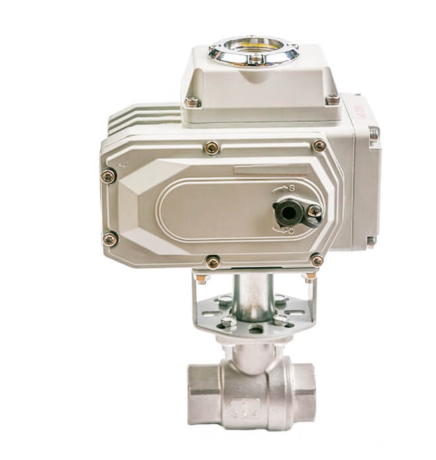

Electric Actuated 2 Piece Screwed Ball Valve
Body Material: Carbon Steel, CF8M
Ball Material: Stainless Steel
Seat: PTFE, RTFE, PPL
Nominal Diameter: DN15 to DN200
Nominal Pressure: 1000PSI
End Connections: Screwed, Threaded Or Welded, Buttweld
Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V
Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V
Power Supply: 24V AC, 24V DC, 110V AC, 230V AC
Actuation Type: Electric Actuated

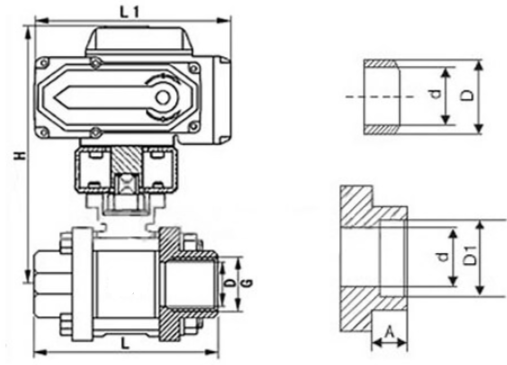

Dimensions
DN | D | L | H | L1 |
8 | 11.6 | 68 | 100 | 100 |
10 | 12.7 | 68 | 100 | 100 |
15 | 15 | 72 | 130 | 130 |
20 | 20 | 82 | 130 | 130 |
25 | 25 | 90 | 165 | 165 |
32 | 32 | 112 | 165 | 165 |
40 | 38 | 120 | 190 | 190 |
50 | 50 | 145 | 190 | 190 |
65 | 65 | 185 | 250 | 250 |
80 | 80 | 210 | 250 | 250 |
100 | 100 | 268 | 280 | 280 |
