Monel Globe Valve
Body: Monel 400, Monel K500, Monel 600, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M,
Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Disc: Monel 400, Monel K500, Monel 600,Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20,
CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Super
Duplex Stainless Steel
Gland Packing: Graphite, PTFE
End Connections: Flanged, Socketweld, Buttweld
Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated
Nominal Size: DN50 to DN600
Nominal Pressure: PN 1.0 to 25 Mpa, Class 150 to 2500
Design and Manufacture Standard: ANSI B16.34, API 600, API 6D, API 603, BS1414
Face to Face Dimension: ANSI B16.10, API 6D
Flanged End: ANSI B16.5, MSS-SP-44 to API605
Butt welded End: ANSI B16.5
Inspection and Test: API 598, API 6D
Dimensions Unit:mm
Class150

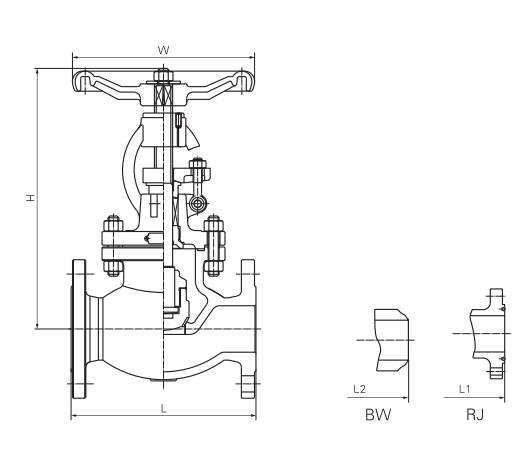

DN | L | L1 | L2 | H | W |
50 | 203 | 216 | 203 | 350 | 220 |
65 | 216 | 229 | 216 | 362 | 250 |
80 | 241 | 254 | 241 | 385 | 280 |
100 | 292 | 305 | 292 | 400 | 320 |
125 | 356 | 369 | 356 | 455 | 320 |
150 | 406 | 419 | 406 | 537 | 400 |
200 | 495 | 508 | 495 | 707 | 450 |
250 | 622 | 635 | 622 | 788 | 560 |
300 | 698 | 711 | 698 | 820 | 580 |
